Cable Reel Machine

Product Description

Compressed wood cable reel production line:

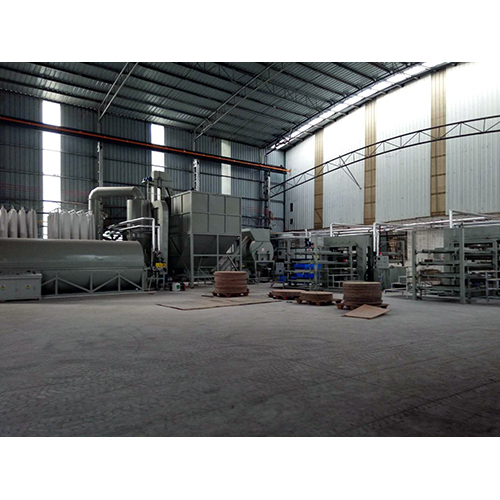

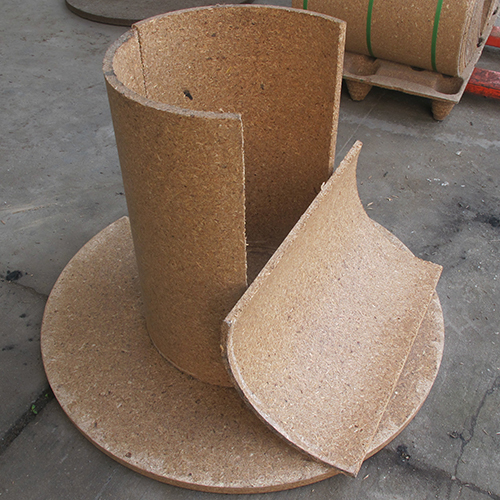

Compressed wood reels are an economical solution for a wide range of wire and cable applications. Flange diameters range from 10'' to 60'' (254 mm to 1524 mm), and are available in recyclable and single-use packages. One completed compressed wood cable reel production line includes press machine, wood chipper, dryer, glue mixer, storage tank etc. To make a fine quality compressed wood cable reels, there are three key points you must be aware of:

• Moisture of the wood sawdust working with different glues. For normal urea formaldehyde glue, the sawdust moisture must below 8%. As a result, you must use a dryer to dry the material with proper temperature and safety operation.
• Temperature: minimum 150 degree.
• Pressing time: 300-350second for urea formaldehyde.

Accessory Machinery in a compressed wood pallet line includes:

• Wood Chipping Machine: processing the wood waste material into smaller particles for further processing.
• Automatic Loading Machine Before Crushing: loading the material into the crushing machine with controlled speed.
• Wood Crushing Machine, as name as hammer mill, processing the wood particles into even small pieces within 2-50mm length, 2-5mm thickness.
• Wood dryer divided into two types by different heating method: Thermal oil/Steam heated dryer and Electronic dryer. Dry the material into requested moisture.
• Material Storage Silo for the material storage after drying.
• Glue Mixer: mixing the material with glue with a certain ratio.
• Hot press machine to form the shape.
•
